E2

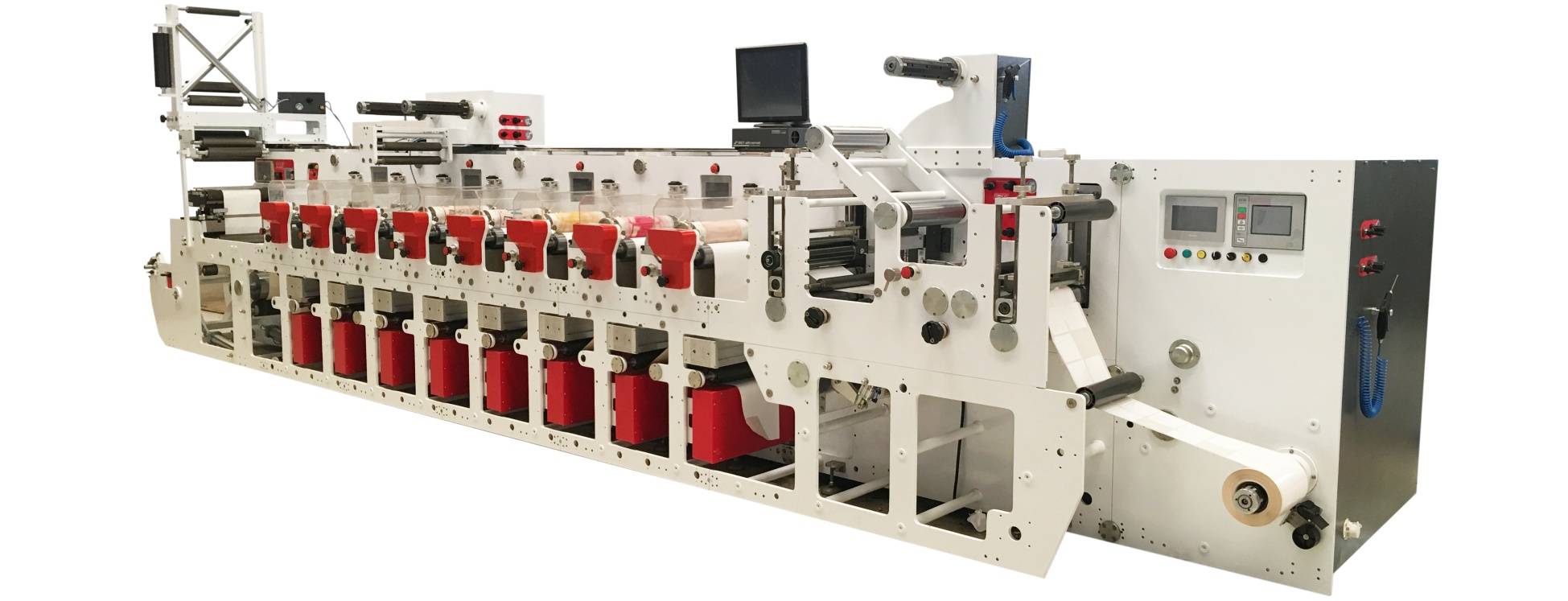

E2 is a shafted servo narrow web flexo press with chill rolls for printing self-adhesive labels, unsupported films, aluminium foil, etc.

Infeed and outfeed are servo driven and ensure that average down time is cut to a minimum, change over rates are reduced and the highest graphic quality can be profitably delivered whether short or long run. Laser pre-register and servo circumferential register ensures quick job change with minimum wastage. The opportunity for label convertors to diversify into new growth markets such as sleeves, wrap around labels, pouches and sachets can be addressed by the E2’s ability to print using chill rolls. Zero-break™ matrix stripping ensures that the most complicated die cut shapes can be produced at high speeds. E2’s automation technology can improve productivity, reduce waste and increase print quality whilst making your company less dependent on highly skilled operators.

Download Brochure

Compare Products
  • Shafted but with servo drives
    Shafted servo press for excellent register throughout the speed range

  • Laser pre-register
    Laser light based pre-register ensures that all print units are set to correct home positions without wasting any material .

  • Electronic final register
    All print units have a HMI for register settings and the register settings can be done with the end-of-press HMI too.

  • Open access
    Clean and clear view of the print unit for quick and fast job change.

  • Quick-change print cylinder
    “No rods” print cylinder change within seconds.

  • Chilled drums
    A separate chilled drum with UV has been incorporated to enhance gloss levels and give sufficient time to the ink lay down to settle before it enters the UV.

  • Short web path
    Just 1.8m between print units. Less web – less wastage – quick setup

  • Rail system for mounting accessories
    Rail system to mount cold foil, turnbar, rotary screen and other accessories movable throughout the press length.

  • 24″ print and die repeat
    Print cylinders from 7.5″-24″ can be accommodated. Large 24″ die repeats also possible.

  • Modular construction
    Assembled to your specifications to meet your needs. Additional modules can be added as your business and market opportunities grow and change.

  • Energy efficient UV systems
    Energy saving UV curing systems are mounted on the chill drums.

Specifications

Substrate Range 10 microns – 350 microns (30 GSM – 280 GSM)
Max Speed 150m/min
Web Width 370mm/450mm
Control System Shaftled servo
Max Roll Capacity Unwind: 1000mm Rewind:800mm Waste:750mm
Print repeat 7.5” – 24” (9”-24” for 450mm) in steps of 1/8”
Web Path Distance Between Prints UV: 1.4m
Pre-Registration Standard
Remote Diagnostics Standard
